MEAN WELL SPOL-01 series: Non-isolated programmable DC-DC POL regulator - SPOL-01

Description

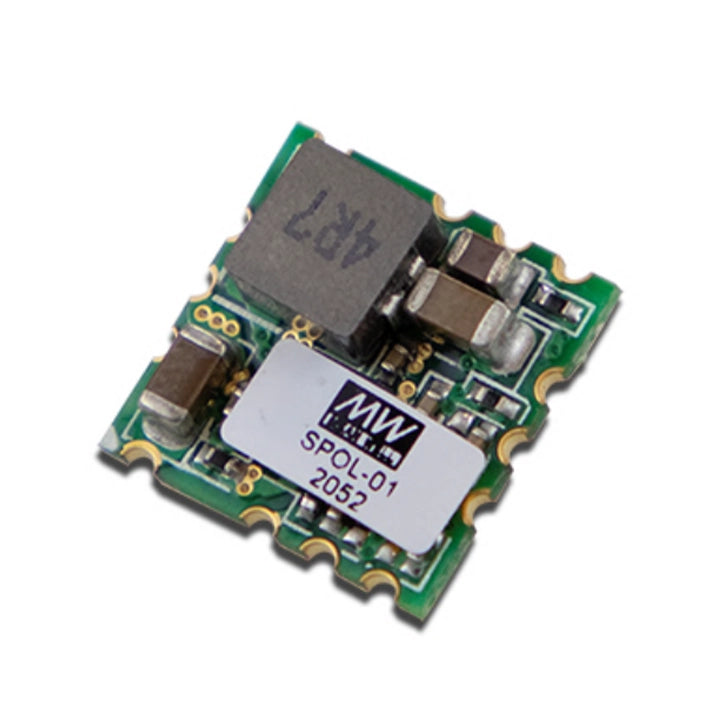

SPOL-01 — Non-isolated programmable DC-DC POL regulator

SPOL-01 is a compact MEAN WELL non-isolated point-of-load DC-DC regulator for embedded power systems. Its LGA surface-mount package accepts 3–14 V DC and provides an externally programmed 0.9–5.5 V DC output, up to 1 A and 5.5 W maximum within the input/output and thermal limits. This model uses positive-logic remote ON/OFF control.

Download MEAN WELL SPOL-01 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

SPOL-01 specifications, control, assembly and packing: PDF pages 1–10.

Model and electrical specifications

Model and package SPOL-01; SPOL-01 series; non-isolated programmable point-of-load regulator in an ultra-compact Land Grid Array (LGA) surface-mount package.
Input voltage 3–14 V DC; normal input 12 V DC.
Start-up and undervoltage Start-up time 6 ms; start-up voltage 3.0 V; undervoltage shutdown 2.2 V typical.
Recommended external fuse 2 A.
Output voltage and capability 0.9–5.5 V DC programmable range; 1 A rated current; 5.5 W maximum rated power. Maximum current, maximum voltage and power remain subject to the input/output limits and derating.
Input/output operating constraint Vout ≤ 0.7 × Vin, with Vin and Vout expressed in volts. Use the set-point area plot on PDF page 5 together with the 3–14 V rated input range; the graph does not extend that rated range.
Voltage accuracy ±3%.
Series efficiency Up to 90% at 12 V input. The output-specific typical figures below are measured at normal 12 V DC input, full load and 25°C.
Selection reference at 5.5 V output Input current: 15 mA at no load, 510 mA at full load. Typical efficiency 90%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 5 V output Input current: 15 mA at no load, 460 mA at full load. Typical efficiency 89.5%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 3.3 V output Input current: 15 mA at no load, 320 mA at full load. Typical efficiency 86%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 2.5 V output Input current: 15 mA at no load, 250 mA at full load. Typical efficiency 83%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 1.8 V output Input current: 15 mA at no load, 200 mA at full load. Typical efficiency 79%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 1.5 V output Input current: 15 mA at no load, 170 mA at full load. Typical efficiency 75%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 1.2 V output Input current: 15 mA at no load, 150 mA at full load. Typical efficiency 71%; output current up to 1 A. These are operating-point references for the programmable module.
Selection reference at 0.9 V output Input current: 15 mA at no load, 120 mA at full load. Typical efficiency 67%; output current up to 1 A. These are operating-point references for the programmable module.
Capacitive load and minimum load Maximum capacitor load 200 µF; no minimum load required.
Ripple and noise 40 mVp-p.
Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with a 0.1 µF capacitor; shown at Vout = 1 V DC.
Line regulation ±0.3%; measured from low line to high line at rated load.
Load regulation ±0.3%; measured from 10% to 100% rated load.
Switching frequency 800 kHz typical.
General test conditions Normal input 12 V DC, rated load, ambient 25°C and 70% RH unless an individual condition is stated.

Output adjustment, control and protection

Trim connection and equation Connect the external Rtrim resistor between Trim pin 6 and GND. Rtrim (kΩ) = 49.1355 / (Vo − 0.895) − 10.7, with Vo in volts.
Trim resistor reference table Vo → Rtrim: 5.5 V → 0 kΩ (short); 5 V → 1.3 kΩ; 3.3 V → 9.8 kΩ; 2.5 V → 20.2 kΩ; 1.8 V → 44.2 kΩ; 1.5 V → 71.3 kΩ; 1.2 V → 150 kΩ; 0.895 V → open (∞). The open-resistor table gives 0.895 V while the specified adjustment range begins at 0.9 V.
Remote ON/OFF Positive logic: power ON with Remote open or 1.6 V < R.C < 5 V; power OFF with Remote shorted to GND or 0 V < R.C < 0.1 V. In the example external transistor circuit, Q1 OFF turns the converter ON and Q1 ON turns it OFF.
Short-circuit protection Continuous short-circuit protection (no damage), with automatic recovery.

Environment and thermal limits

Cooling and working environment Free-air convection; −40 to +82°C with derating; 20–90% RH, non-condensing.
Ambient-temperature derating The 20 LFM airflow curve permits 100% load from −40 to +65°C, then falls to 70% at +70°C, 20% at +80°C and zero at +82°C. Apply the full curve between these points.
Storage environment −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient 0.03%/°C over 0–90°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes.

Safety and electromagnetic compatibility

Safety standards and marks LVD BS EN/EN62368-1 approved; the catalog lists EAC TP TC 004 as pending. CE and UKCA marks are shown. Approval and pending status are distinct.
EMC emissions Conducted and radiated BS EN/EN55032 Class A with external components. Apply the model-specific external circuits below and verify the complete equipment.
ESD immunity BS EN/EN61000-4-2, Level 3: ±8 kV air and ±6 kV contact.
EFT and surge immunity EFT/burst: BS EN/EN61000-4-4, Level 3, 2 kV. Surge: BS EN/EN61000-4-5, Level 4, 2 kV. The specified external protection circuit is required.
Radiated Class A external circuit PDF page 8 uses C1 = 2.2 µF MLCC across the input and L1 = 1.5 µH in series with +Vin. The negative input, module GND and load return share the return node.
EFT and surge external circuit The separate PDF page 8 circuit places TVS 5.0SMLJ22CA-IP and C1 across the input. Its BOM prints C1 as “2200 µH”, although the diagram uses a capacitor symbol. Confirm the correct capacitance and rating with MEAN WELL before selecting C1; do not treat the printed inductance unit as a verified capacitor value.

Mechanical dimensions and pad connections

Dimensions 12.4 × 12.4 × 4.0 mm (0.488 × 0.488 × 0.157 inch); mechanical drawing tolerance ±0.25 mm.
Pad functions Pin 1 Remote ON/OFF; pin 2 Vin; pins 3, 7 and 11 GND; pin 4 Vout; pin 6 Trim; pins 5, 8, 9, 10 and 12 N.C (no connection).
Module pad dimensions Bottom-view pads 1 and 5–12: 1.02 × 1.02 mm; pads 2–4: 4.06 × 1.78 mm.
PCB land dimensions Top-view footprint pads 1 and 5–12: 3 × 1.5 mm; pads 2 and 4: 4.32 × 2.04 mm; pad 3: 4.26 × 2.04 mm. Footprint drawing overall spans 14 × 13.8 mm and marks 12.9 mm minimum spans in both directions.
Mechanical drawing coordinates PDF page 4 bottom-view references include 1.19, 3.37, 4.57, 3.43 and 2.29 mm. The footprint top view includes 1.2, 3.56, 4.57, 3.43 and 2.29 mm, plus 1.4 mm typical and 1.28 mm typical. Use the drawing extension lines and the stated bottom/top orientation for placement.

Surface-mount assembly and storage

Automated placement Open-frame construction is intended for automated assembly. The manufacturer suggests picking and placing over the inductor; optimize nozzle size, tip style, vacuum pressure and placement speed for the assembly process.
Moisture sensitivity MSL level 3. Follow J-STD-033 for moisture-sensitive surface-mount handling, packing, shipping and use.
Dry packing and floor life Use a moisture-barrier bag with desiccant for MSL 3 or higher and keep it sealed until use. After opening, the listed floor life is 168 hours at ≤30°C and 60% RH. Dry-packed shelf life is at most 12 months from the bag-seal date when stored below 40°C and below 90% RH.
Cleanliness before soldering Keep solder pads clean and handle boards carefully to avoid contamination and excess gas generation when flux reacts with oxides or contaminants.
Lead-free reflow process J-STD-020 moisture/reflow classification; recommended forced-air-convection reflow with Sn/Ag/Cu (SAC) solder paste. Soldering outside the recommended profile requires testing to verify performance.
Reflow preheat 150°C minimum to 200°C maximum preheat temperature, with 60–120 seconds between these temperatures.
Reflow peak and dwell Peak 245°C; 20–40 seconds within 5°C of the peak. Maintain temperature above 217°C for 60–150 seconds.
Reflow ramp limits Average ramp-up from maximum preheat to peak: 3°C/s maximum. Ramp-down from peak to liquidus: 6°C/s maximum. Time from 25°C to peak: 8 minutes maximum.

Applications, reliability and packing

Typical applications Telecom, server and storage equipment, industrial control, distributed power architectures, intermediate-bus applications, renewable energy, battery management systems (BMS) and field-programmable gate arrays (FPGA).
Application examples The SPOL-01 diagrams illustrate industrial-PC rails for hard disk, memory, MCU, display, level shifter, USB and LAN loads, and a green-energy/BMS system with a 12 V input and 5 V rail. These are system examples; the module does not provide the external charger, BMS or communication functions.
Reliability 2600 k hours MTBF, MIL-HDBK-217F at 25°C.
Manufacturer warranty 3 years.
Unit weight 1 g per unit as the catalog PACKING reference.
Reel and carton packing 650 converters per 13-inch reel; one box gross weight 1.04 kg; 2 boxes / 1300 converters per carton, gross weight 2.9 kg.
Packing dimensions Box drawing: 340 × 355 × 43 mm; carton drawing: 125 × 405 × 380 mm. Reel drawing: Ø330 mm outside, Ø100 mm hub, Ø13.15 ±0.35 mm center hole, 30.4 mm maximum width and 2.2 mm local reference.
Carrier tape specification EIA-481-2A; cumulative tolerance over 10 sprocket-hole pitches ±0.2 mm; general dimensions ±0.1 mm unless separately marked. Tape width 24 ±0.3 mm, pocket pitch 20 mm, hole pitch 4 mm, Ø1.5 mm holes (+0.1/−0), thickness 0.4 ±0.05 mm; follow the illustrated unreeling direction.
Carrier tape drawing references PDF packing drawing marks 12.6 mm pocket spans, 11.5, 1.75, 2, 3.6 and 1.4 mm local dimensions, with 6°, 60°, 90° and 10° angle references. Use the dimension endpoints on the packing drawing; these are packaging dimensions, not PCB land dimensions.
Manufacturer packing note The catalog states no minimum order quantity is required for sample orders and asks customers to consolidate tape-package orders where possible. Standard tape quantity is 650 pieces; confirm the actual order and packing quantity with the supplier.

Installation and system verification

Complete-system EMC verification Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.
